1 / 720" Sunstone Appliance Cabinet for UpTo 14-1/2 In. Cut-Out Width Appliance or BarStation w/Right Swing Door - SAC20CSDR
★★★★☆4.2 · 5 reviewsKey features
- Designed for multiple types of double slide-in side burners or bar stations.
- Comes standard with a right-swing side door for trash bin or propane tank storage.
- Includes a bottom utility access port behind a slide-out tray.
- Features a "TRIM-KIT" system for appliance cut-out widths from 9-3/4 In. to 14-1/2 In.
- Constructed with durable 304 stainless steel structure and rod handles.
- Covered by our warranty — see details
Description

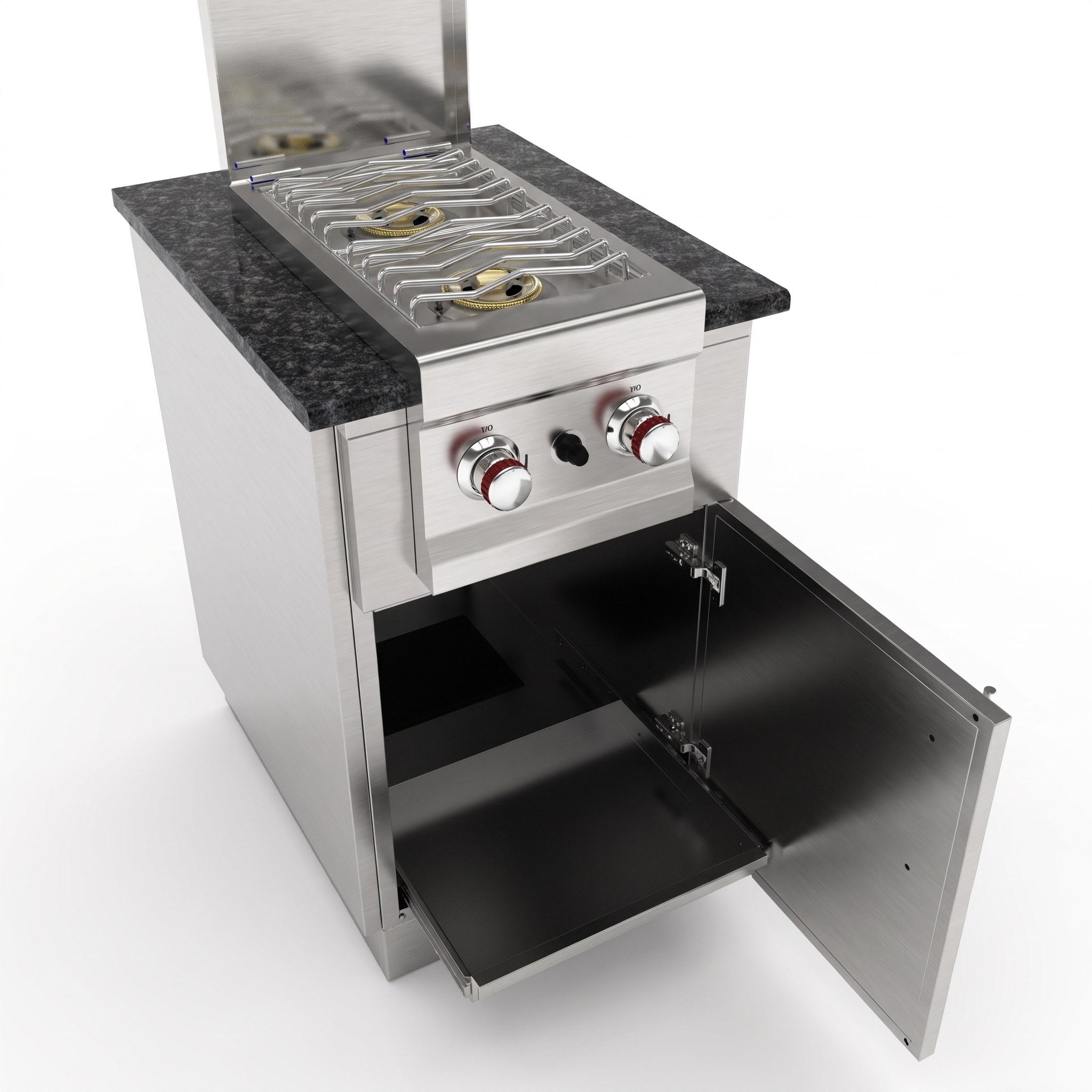

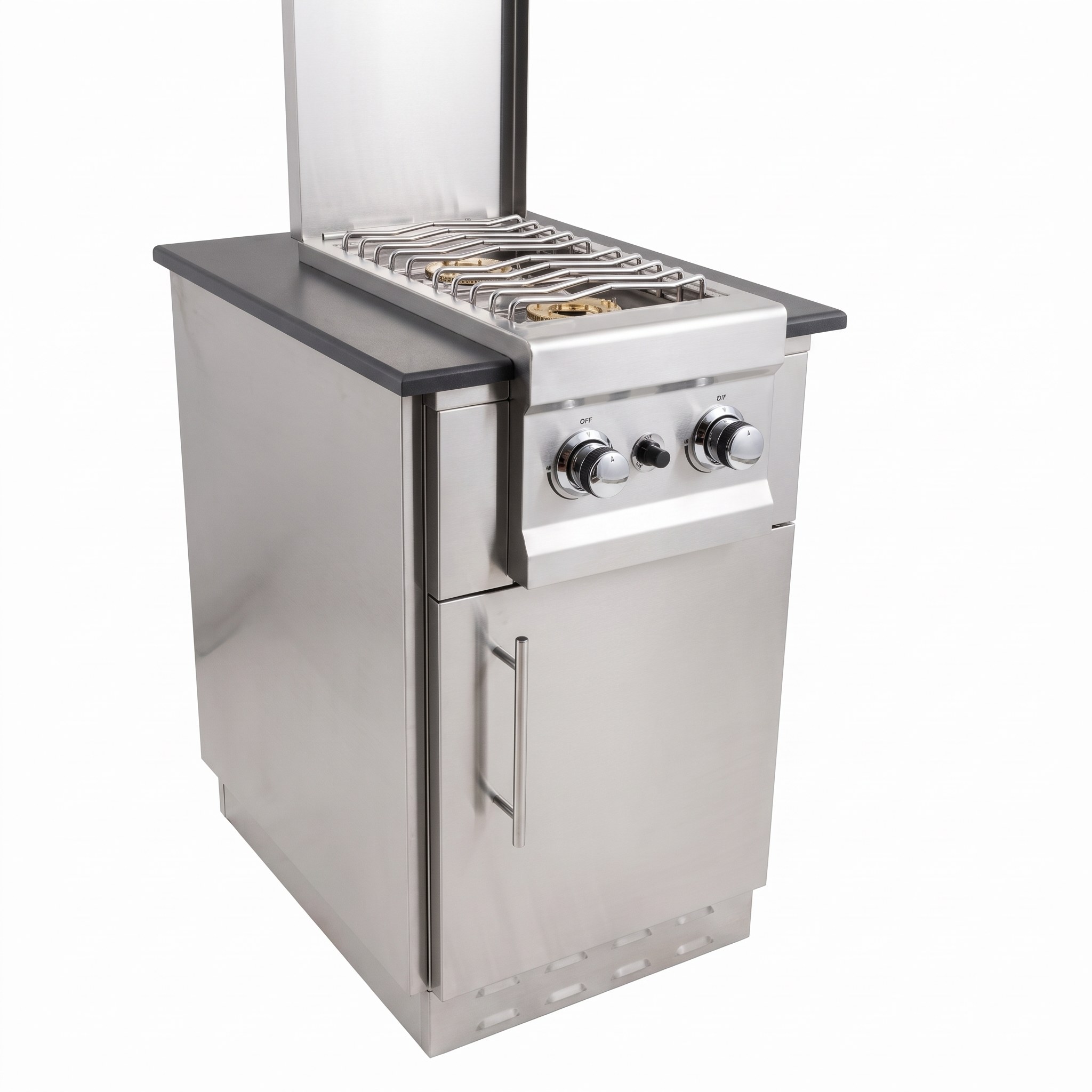

The 20 In. Sunstone Appliance Base Cabinet is uniquely designed to receive multiple Types of either Double Slide-In Side Burners or Bar Stations of many industry Brand Models right out of the box with easy installation. The cabinet comes standard with a Right-Swing Side Door Enclosure for a Trash Bin or Propane Tank Storage. There is a Bottom Utility Access Port as well, located behind the bottom a Slide out Tray. The cabinet comes Fully Assembled, only requiring to fasten on the four Peg-Legs (included), screw in place each 304 SS Rod Handles and mount the Front and Back Kick-Plates.
This Cabinet makes use of a “TRIM-KIT” that is installed on the front face of cabinet, which adapts the cabinet to fit your preferred appliance, and is compatible with “CUT-OUT” Sizes between 9-3/4 In. to 14-1/2 In. Width by 8 In. to 10-1/4 In. Height with counter at 3/4 In. Height with Filler Rail installed or removed. Additional Height can be adjusted by Removing Bottom Filler Rail or by adding a Thicker Counter or Backer Board. Please Specify the Correct “TRIM-KIT” to be included with cabinet to fit your product, if your Side Burner or Bar Station is any of our Models we will automatically include the correct Trim-Kit.
Please refer to the Cabinets Specification Sheet for more information, see the second page showing the various insert sleeve dimensions, this refers to your products “Cut-Out” Dimension – match this up to the correct “Trim-Kit” and specify this piece on your order.
Specifications
| Type | Access door |
|---|---|
| Collection | Appliance Cabinets |
| Width | 20" |
| Doors | 1 |
| Door Swing | Right |
| Handles | 304 Stainless Steel Rod Handles |
| Material | 304 Stainless Steel |
| Assembly | Fully Assembled |
| Installation | Pin-Lock System |
| Compatibility | "CUT-OUT" Sizes between 9-3/4 In |
| Brand | Sunstone |
| Appliance Cut-Out Height | 8" to 10-1/4" |
| Appliance Cut-Out Width | 9-3/4" to 14-1/2" |
| Kick-Plates | Front & Back Included |
| Adjustable Legs | Yes |
| Utility Ports | Bottom utility access port behind slide-out tray |
| Warranty | View warranty |
Compare models
| Compare5 models | |||||
|---|---|---|---|---|---|
| Price | $1,573.75 | $1,573.75 | $1,935.00 | $2,110.00 | $2,069.00 |
| SKU | SAC20CSDR | SAC20CSDL | SAC24APC | SAC30APC | SAC34DWC |
| Type | Access door | Access door | Appliance cabinet | Appliance cabinet | Cabinet |
| Width | 20" | 20" | 24" | 30" | 34" |
| Doors | 1 | 1 | — | — | — |
| Door Swing | Right | Left | — | — | — |
| Handles | 304 Stainless Steel Rod Handles | 304 Stainless Steel Rod Handles | 304 Stainless Steel Rod Handles | 304 Stainless Steel Rod Handles | 304 Stainless Steel Rod Handles |
| Material | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| Finish | — | — | No. 4 brushed stainless | No. 4 brushed stainless | — |
| Assembly | Fully Assembled | Fully Assembled | Fully Assembled | Fully Assembled | Fully Assembled |
| Installation | Pin-Lock System | Pin-Lock System | Pin-Lock System | Pin-Lock System | Pin-Lock System |
| Compatibility | "CUT-OUT" Sizes between 9-3/4 In | "CUT-OUT" Sizes between 9-3/4 In | Up to 15" wide Fridge | Up to 21" wide Fridge | SAPWD30PRO |
| Brand | Sunstone | Sunstone | Sunstone | Sunstone | Sunstone |
| Kick-Plates | Front & Back Included | Front & Back Included | Front & Back Included | Front & Back Included | Front & Back Included |
| Adjustable Legs | Yes | Yes | Yes | Yes | Yes |
| Appliance Cut-Out Height | 8" to 10-1/4" | 8" to 10-1/4" | — | — | Up to 10" |
| Appliance Cut-Out Width | 9-3/4" to 14-1/2" | 9-3/4" to 14-1/2" | — | — | Up to 24-1/2" |
| Electrical Access | — | — | Front Left Side Panel Cover | Front Left Side Panel Cover | 1-Gang Electrical Boxes Included |
| Utility Ports | Bottom utility access port behind slide-out tray | Bottom utility access port behind slide-out tray | — | — | — |
| Appliance Compatibility | — | — | Up to 15" Wide Fridges, Wine Coolers, Ice Makers | Up to 21" Wide Fridges, Wine Coolers, Ice Makers | — |
| Back Panel | — | — | Finished | Finished | — |
| Warranty | |||||
| You're viewing this | View model | View model | View model | View model |
Documents (3)
Cabinet spec sheets
Product manuals
Warranty
Warranty
Coverage depends on the product. The warranty page lists every term — read it there instead of a shortened line on this page.
Shipping & returns
Shipping & Delivery
All orders ship free to the 48 contiguous United States. We can ship products anywhere in the contiguous United States.
Larger (freight) shipments are curb-side only. A signature and possibly assistance may be required for unloading. We will work with you to arrange a delivery date and time, but the final details will be between you and the freight carrier.
IMPORTANT: ALL LTL DELIVERIES ARE CURBSIDE UNLESS WHITE GLOVE FEES ARE PAID. All reports of damage must be made within 48 hours after delivery.
Receiving Your Shipment
If you received an item that appears to have been damaged in-transit, call us immediately at 888-934-9449 or 512-487-5116, preferably while the driver is still there.
Inspect all freight before signing the driver's receipt. If damage is found, do not reject the shipment — note the damage on the receipt and contact us. For concealed damage, a claim must be filed within 48 hours of delivery.
FedEx and UPS claims are usually resolved within 14 business days. Freight shipper claims may take up to 120 calendar days.
Returns & Exchanges
Returns are accepted within 60 days of original purchase, in original packaging and unused, for a full refund minus a 15% Restocking Fee.
Items cannot have been installed or used. Customer is responsible for all return freight charges, unless the error is on our part. All returned goods must be in new condition and in original cartons, well packed.
We highly recommend insuring products when shipping back to us. Returns will be rejected if the product is received damaged.
Customer reviews
About our reviews: Reviews are collected from verified direct customers as well as sourced from our authorized dealer network, including Home Depot, Lowe's, Amazon, and other premium Sunstone dealers — ensuring a broad, authentic representation of real customer experiences.
I've been looking for a cabinet to house my side burner, and this 20-inch Sunstone unit is just perfect. The right swing door is super convenient, and it integrated seamlessly with my existing outdoor kitchen setup. Really impressed with the quality and how sturdy it feels.
This appliance cabinet is built like a tank, as expected from Sunstone. It fit my bar station perfectly, and the stainless steel looks great. My only minor gripe is that the internal setup for different appliance cut-outs took a little more fiddling than I anticipated, but nothing major.
The SAC20CSDR cabinet does what it's supposed to do – holds my side burner securely. The construction is solid, but for the price point, I expected a slightly more refined finish on some of the interior edges. It's functional, but not overwhelmingly impressive for the cost.
I needed a dedicated spot for my double side burner, and this Sunstone cabinet delivered. The 20-inch width was ideal, and the installation was straightforward. It really completes the look of my outdoor kitchen and keeps everything tidy.
This appliance cabinet is top-notch! I love how versatile it is, ready to accept various brands of side burners or bar stations. The right swing door is a nice touch, and the overall construction feels incredibly durable, perfect for outdoor use.
