Appliance Cabinets
304 stainless cabinets for outdoor refrigeration, cocktail stations, and side burners. SAC20CSDL and SAC20CSDR take 14½" Versa side burners and cocktail stations; SAC34CGDC takes the larger 30" cocktail station. APC frames take 15"–25" fridges, wine coolers, kegerators, and ice makers.
20" Sunstone Appliance Cabinet for UpTo 14-1/2 In. Cut-Out Width Appliance or BarStation w/Left Swing Door - SAC20CSDL
SAC20CSDL / CSDR — 14½" cocktail & side-burner bays
SAC34CGDC — 30" cocktail station
SAC24 / 30 / 34 APC fridge frames
Single & double warming-drawer cabinets
1-gang electrical box included
Expandable partition design
Appliance Cabinets
Build the cold and prep side of the island in 304 stainless. Cocktail-station cabinets use a trim-kit face for Versa double burners, Companion Pro, and 14" bar stations — order left or right door swing for trash or propane storage. Fridge frames arrive as an open three-piece: left panel, right panel, and a finished back for 15"–25" outdoor refrigeration. Warming-drawer cabinets are a closed box with the drawer cut-out already in the face and a 1-gang electrical box in the enclosure.
- SAC20CSDL / CSDR — 14½" cocktail station and side-burner cut-out, left or right swing
- SAC34CGDC — 34" hybrid grill / bar-center; also the 30" cocktail station bay
- SAC24APC — up to 15"-wide outdoor fridge
- SAC30APC — up to 21"-wide fridge / wine
- SAC34APC — up to 25"-wide fridge / kegerator
- SAC34SWC / DWC — single or double warming drawer
| Specification | Value |
|---|---|
| Material | 304 stainless steel |
| Openings | 14.5" cocktail · 15" · 21" · 25" · 30" cocktail |
 Electrical | 1-gang box + SS cover |
| Expand | Swap back panel + partitions |
Material
- Value
- 304 stainless steel
Openings
- Value
- 14.5" cocktail · 15" · 21" · 25" · 30" cocktail
Electrical
- Value
- 1-gang box + SS cover
Expand
- Value
- Swap back panel + partitions
Appliance Cabinets in this collection
8 cabinets in this collection — each listed with width, cut-out, and material.
Cocktail stations & side burners
SAC20CSDL / CSDR for 14½" Versa burners and cocktail stations; SAC34CGDC for the 30" cocktail station
Fridge & refrigeration frames
SAC24 / 30 / 34 APC — sized to 15", 21", and 25" appliances
Warming drawer cabinets
SAC34SWC single and SAC34DWC double
Greater detail on appliance cabinets
Cocktail and side-burner bays
SAC20CSDL and SAC20CSDR are 20" cabinets with a trim-kit face for slide-in side burners and 14" cocktail stations. Door swing is the trash and propane bay — order left or right so it clears the neighbor. SAC34CGDC is the 34" box for the 30" cocktail station.
Fridge frames
APC cabinets arrive as two side partitions and a back panel. The fridge, wine cooler, or ice maker sits in the opening with room to breathe and a finished back that looks right in the open or against a wall.

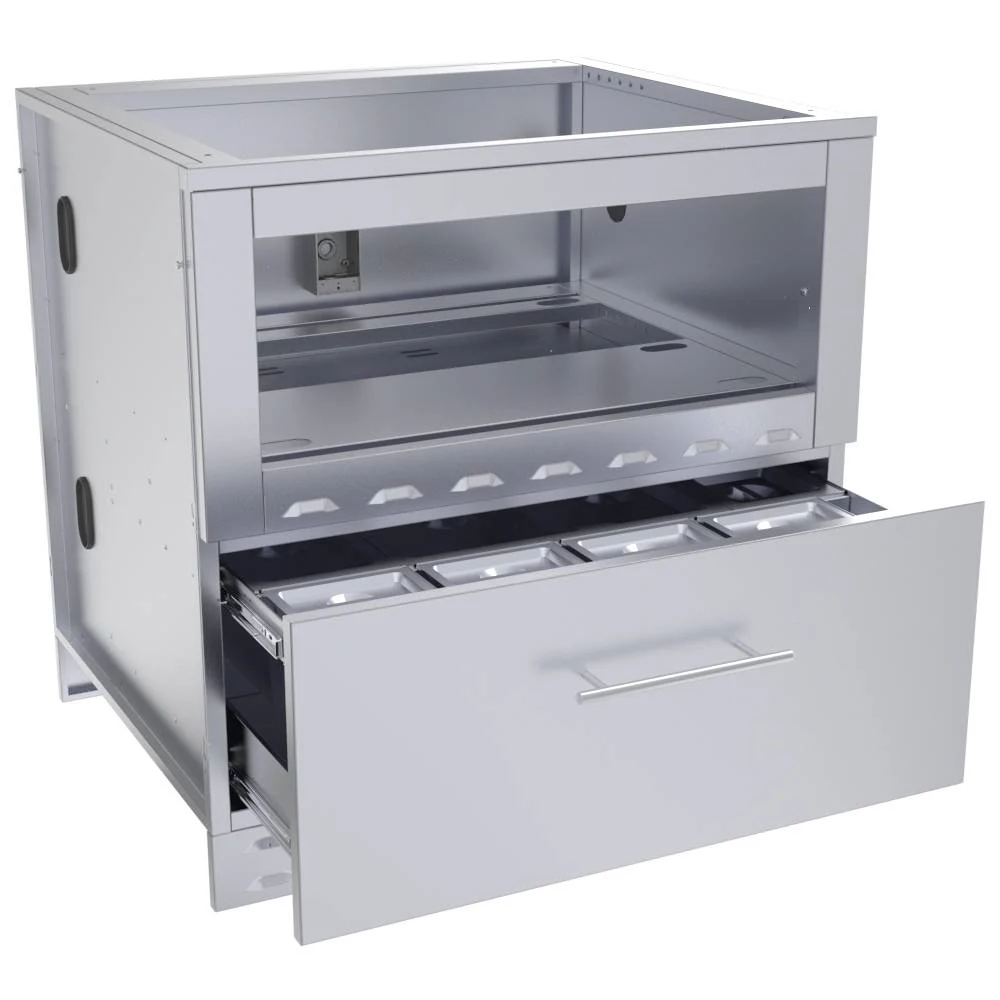

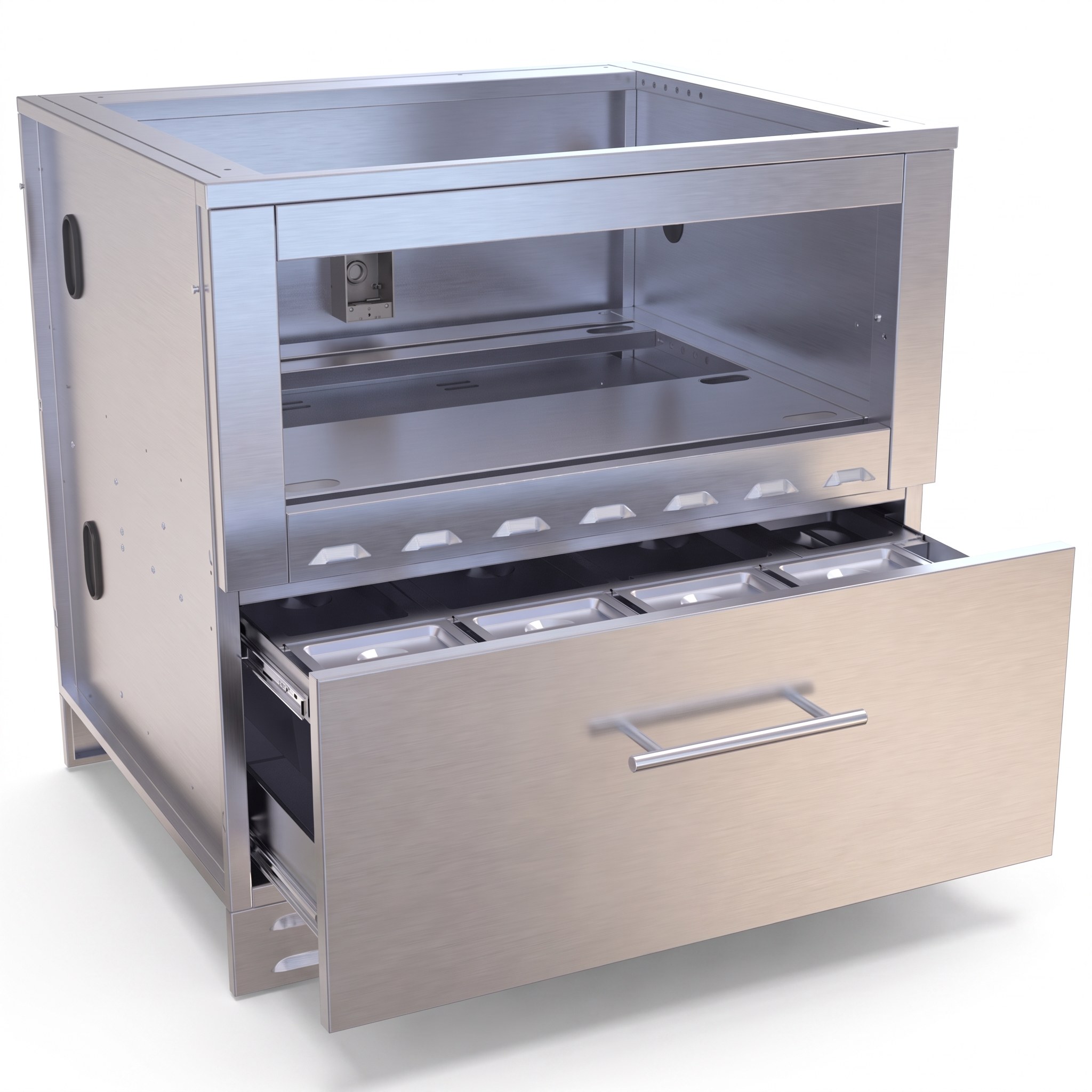

Warming-drawer cabinets

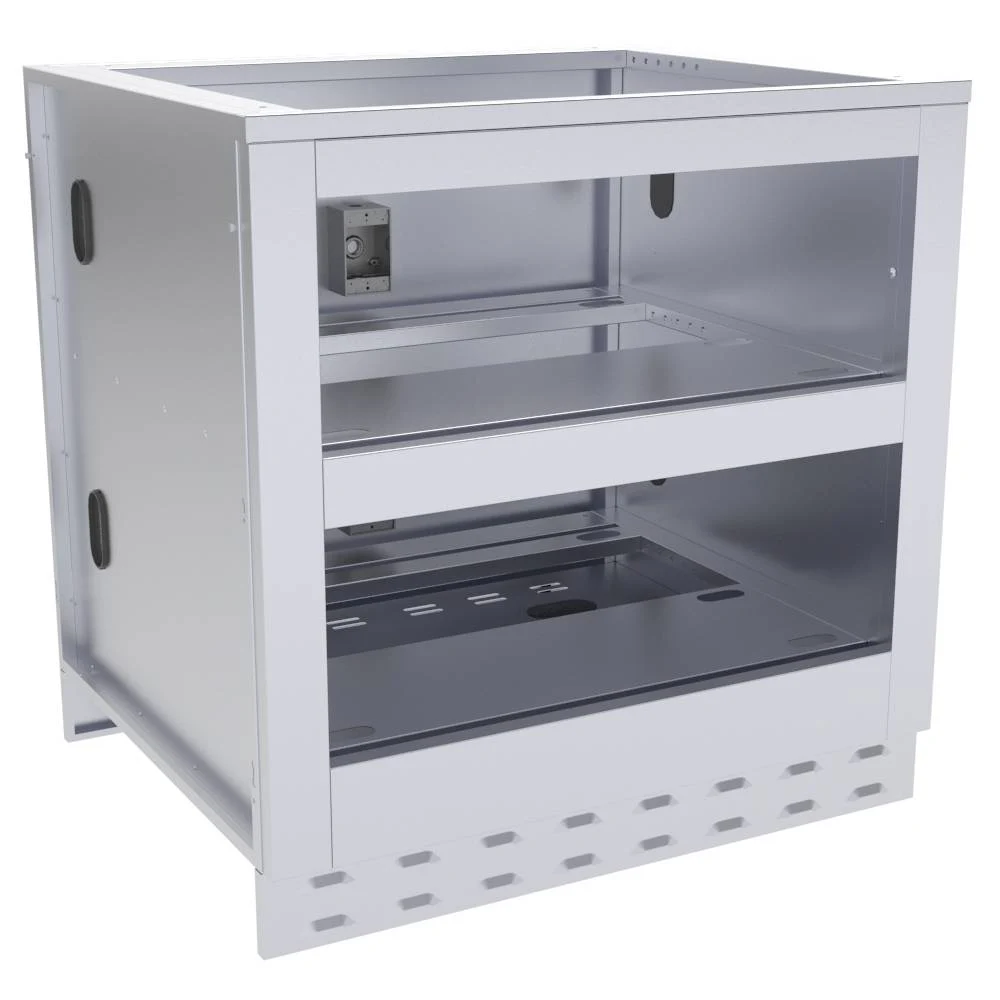

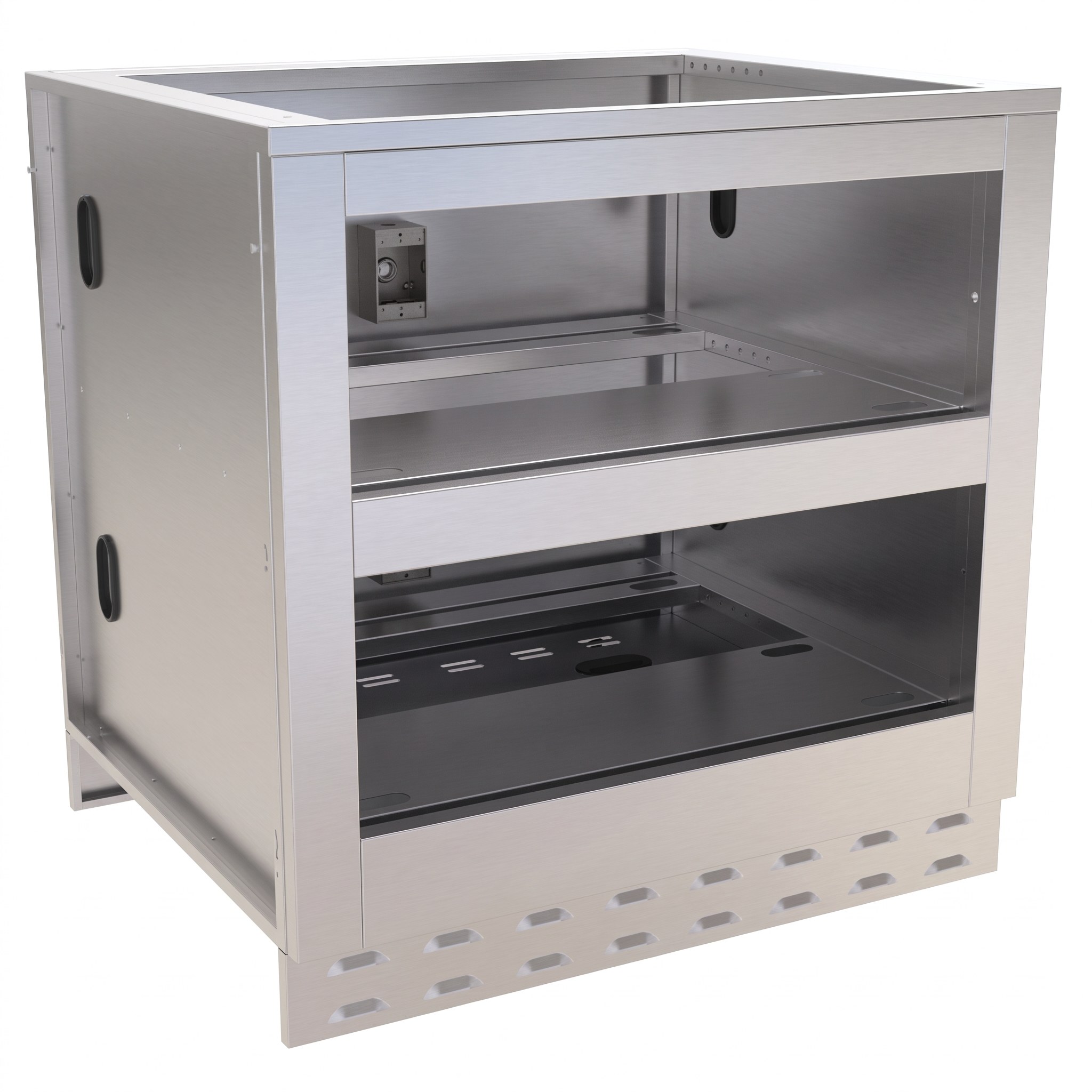

SAC34SWC and SAC34DWC are dedicated warming-drawer cabinets with 1-gang electrical boxes in the enclosure, peg legs, rod handles, and front and back kick plates.
Appliance Fit Guide
Sunstone Appliance Cabinets take cocktail stations and side burners as well as outdoor refrigeration. SAC20CSDL / CSDR are the 20" bays for 14½" Versa side burners and 14" cocktail stations. SAC34CGDC is the 34" hybrid grill / bar-center cabinet that also fits the larger 30" cocktail station — it stays on Grill Cabinets as a grill base and is listed here as the 30" cocktail bay. Fridge frames (APC) ship as a 3-piece package (two side partition panels + one back support panel). Adjacent counter rails can be removed for taller appliances, and leg height is adjustable.
| Item # | Cabinet Size | Appliance Type | Max Appliance Width | Max Height | Compatible Appliances | Notes | |
|---|---|---|---|---|---|---|---|
| SAC24APC Refrigerator | 24"W × 28¼"D × 34½"H · Appliance Cabinet | Refrigerator | Up to 15" | Up to 34" (adjustable legs) | Sunstone® 15" Fridge, Perlick® 15", Marvel® 15", True® 15", U-Line® 15", Danby® 15", Most 15" wide outdoor-rated fridges | Includes 1-gang electrical box. Counter rail removable for taller units. | View Cabinet → |
 SAC30APCRefrigerator | 30"W × 28¼"D × 34½"H · Appliance Cabinet | Refrigerator | Up to 21" | Up to 34" (adjustable legs) | Sunstone® 21" Fridge, Perlick® 20", Marvel® 20", True® 20", U-Line® 21", Alfresco® 21", Most 21" wide outdoor-rated fridges | Includes 1-gang electrical box. Counter rail removable for taller units. | View Cabinet → |
 SAC34APCRefrigerator | 34"W × 28¼"D × 34½"H · Appliance Cabinet | Refrigerator | Up to 25" | Up to 34" (adjustable legs) | Sunstone® 24" Fridge, Perlick® 24", Marvel® 24", True® 24", U-Line® 24", Alfresco® 24", Most 24–25" wide outdoor-rated fridges, wine coolers, or kegerators | New Design. Includes 1-gang electrical box. Counter rail removable for taller units. | View Cabinet → |
| SAC20CSDL Cocktail / Side Burner | 20"W × 28¼"D × 34½"H · Cocktail / Side Burner Cabinet | Cocktail / Side Burner | 9¾"–14½" cut-out | 8"–10¼" | Sunstone® SUN13VDB Versa Double Burner, Sunstone® SUN13CPRO Companion Pro, Sunstone® B-RBC14 14" cocktail station, Most 14½" slide-in side burners and bar stations | Left-swing door for trash or propane. Trim-kit front for Versa side burners and 14" cocktail / bar stations. | View Cabinet → |
 SAC20CSDRCocktail / Side Burner | 20"W × 28¼"D × 34½"H · Cocktail / Side Burner Cabinet | Cocktail / Side Burner | 9¾"–14½" cut-out | 8"–10¼" | Sunstone® SUN13VDB Versa Double Burner, Sunstone® SUN13CPRO Companion Pro, Sunstone® B-RBC14 14" cocktail station, Most 14½" slide-in side burners and bar stations | Right-swing door for trash or propane. Same 14½" cut-out as SAC20CSDL. | View Cabinet → |
 SAC34CGDCCocktail / Side Burner | 34"W × 28¼"D × 34½"H · Hybrid Grill / 30" Cocktail Cabinet | Cocktail / Side Burner | 23⅞"–28½" cut-out | 10⅜"–12¾" | 30" cocktail / bar-center stations, Sunstone® charcoal and hybrid grills (see Grill Cabinets), Most 24"–28½" cut-out bar centers | Dual-listed on Grill Cabinets as a charcoal/hybrid grill base. On this page it is the bay for the larger 30" cocktail station. | View Cabinet → |
 SCC4SPEL / SCC4SPERPartition Panel | 4" Combo Left & Right Panels · Partition Panel Package | Partition Panel | Adjustable — pairs with any back panel | Adjustable leg height | Use with SCC15SPE, SCC21SPE, or SCC25SPE back panels, Accommodates fridges, wine coolers, kegerators, ice makers, Can also accept grill carts | Two side partition panels included. Allows unlimited expandability for multiple appliance runs. Left panel includes 304 SS electrical cover. | View Cabinet → |
 SCC15SPEPartition Panel | 15" Back Appliance Panel · Back Support Panel | Partition Panel | Pairs with 15" wide appliance run | Adjustable | 15" fridges, wine coolers, ice makers, Sunstone® 15" Fridge, Perlick® 15", Marvel® 15" | Back support panel for 15" appliance opening. Combine with SCC4SPEL/SCC4SPER side panels. | View Cabinet → |
 SCC21SPEPartition Panel | 21" Back Appliance Panel · Back Support Panel | Partition Panel | Pairs with 21" wide appliance run | Adjustable | 21" fridges, wine coolers, kegerators, Sunstone® 21" Fridge, Perlick® 20", U-Line® 21" | Back support panel for 21" appliance opening. Combine with SCC4SPEL/SCC4SPER side panels. | View Cabinet → |
 SCC25SPEPartition Panel | 25" Back Appliance Panel · Back Support Panel | Partition Panel | Pairs with 25" wide appliance run | Adjustable | 24–25" fridges, wine coolers, kegerators, Sunstone® 24" Fridge, Perlick® 24", Marvel® 24" | Back support panel for 25" appliance opening. Combine with SCC4SPEL/SCC4SPER side panels. | View Cabinet → |

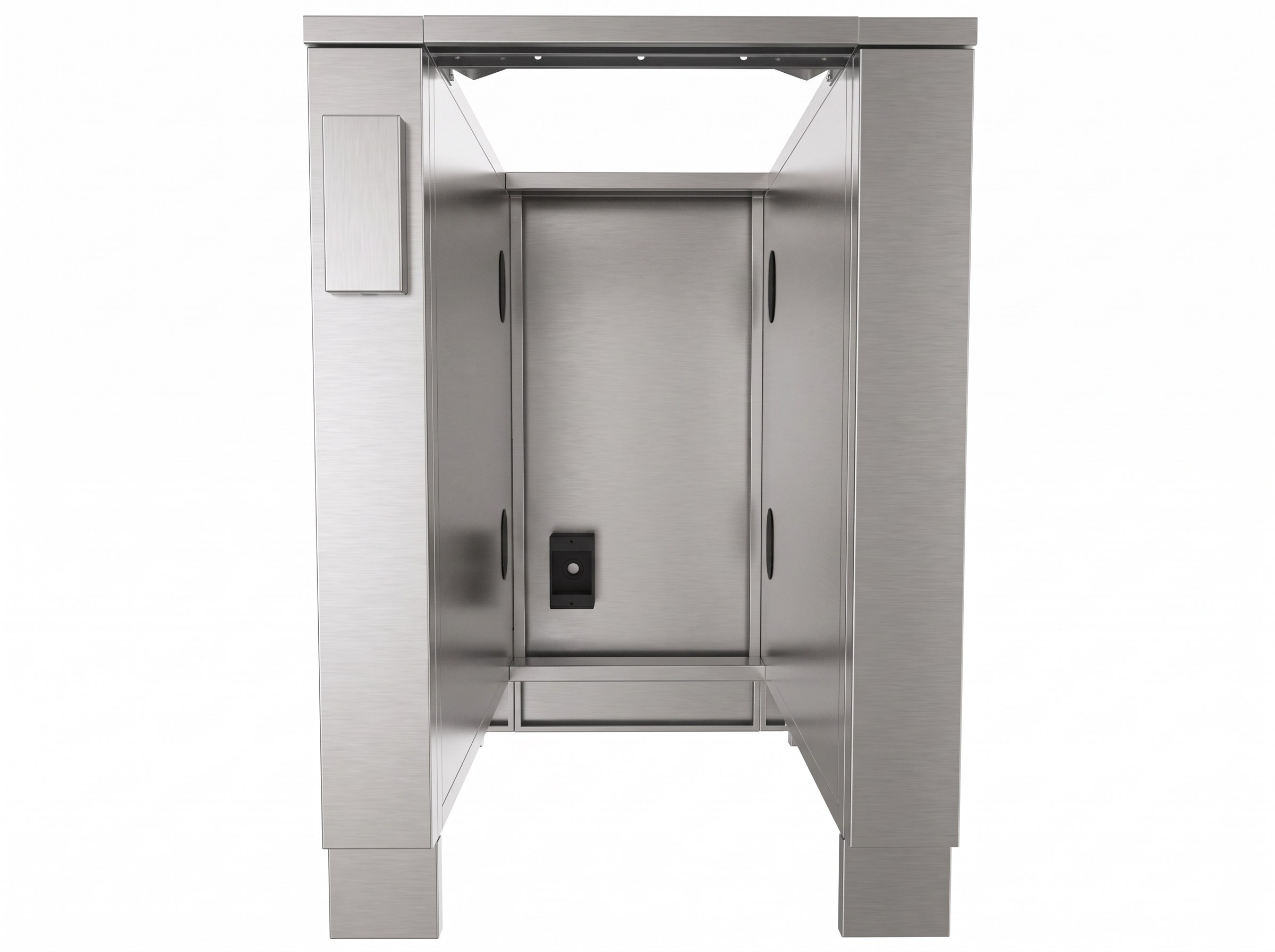

SAC24APC Refrigerator
- Cabinet Size
- 24"W × 28¼"D × 34½"H · Appliance Cabinet
- Appliance Type
- Refrigerator
- Max Appliance Width
- Up to 15"
- Max Height
- Up to 34" (adjustable legs)
- Compatible Appliances
- Sunstone® 15" Fridge, Perlick® 15", Marvel® 15", True® 15", U-Line® 15", Danby® 15", Most 15" wide outdoor-rated fridges
- Notes
- Includes 1-gang electrical box. Counter rail removable for taller units.

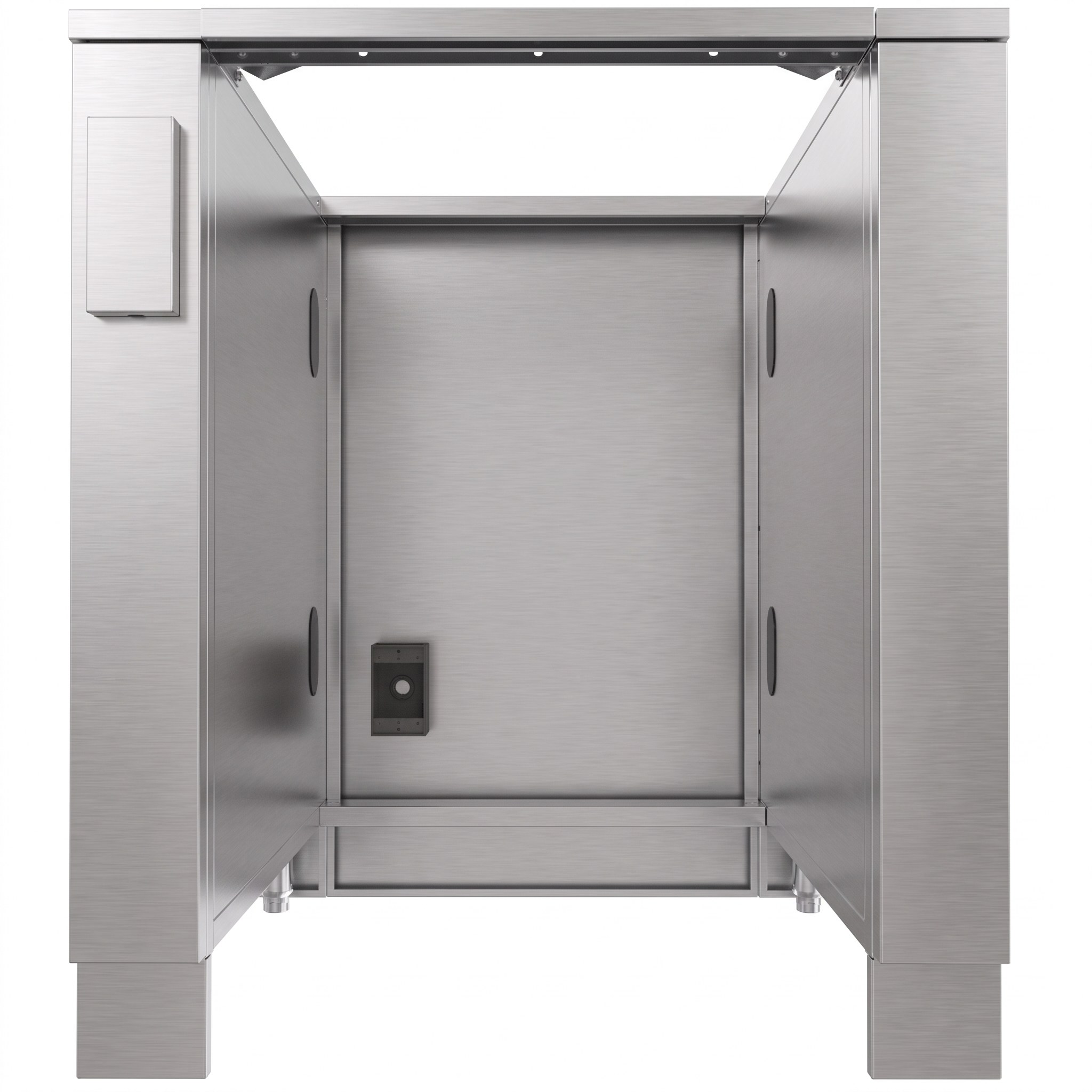

SAC30APC Refrigerator
- Cabinet Size
- 30"W × 28¼"D × 34½"H · Appliance Cabinet
- Appliance Type
- Refrigerator
- Max Appliance Width
- Up to 21"
- Max Height
- Up to 34" (adjustable legs)
- Compatible Appliances
- Sunstone® 21" Fridge, Perlick® 20", Marvel® 20", True® 20", U-Line® 21", Alfresco® 21", Most 21" wide outdoor-rated fridges
- Notes
- Includes 1-gang electrical box. Counter rail removable for taller units.
SAC34APC Refrigerator
- Cabinet Size
- 34"W × 28¼"D × 34½"H · Appliance Cabinet
- Appliance Type
- Refrigerator
- Max Appliance Width
- Up to 25"
- Max Height
- Up to 34" (adjustable legs)
- Compatible Appliances
- Sunstone® 24" Fridge, Perlick® 24", Marvel® 24", True® 24", U-Line® 24", Alfresco® 24", Most 24–25" wide outdoor-rated fridges, wine coolers, or kegerators
- Notes
- New Design. Includes 1-gang electrical box. Counter rail removable for taller units.

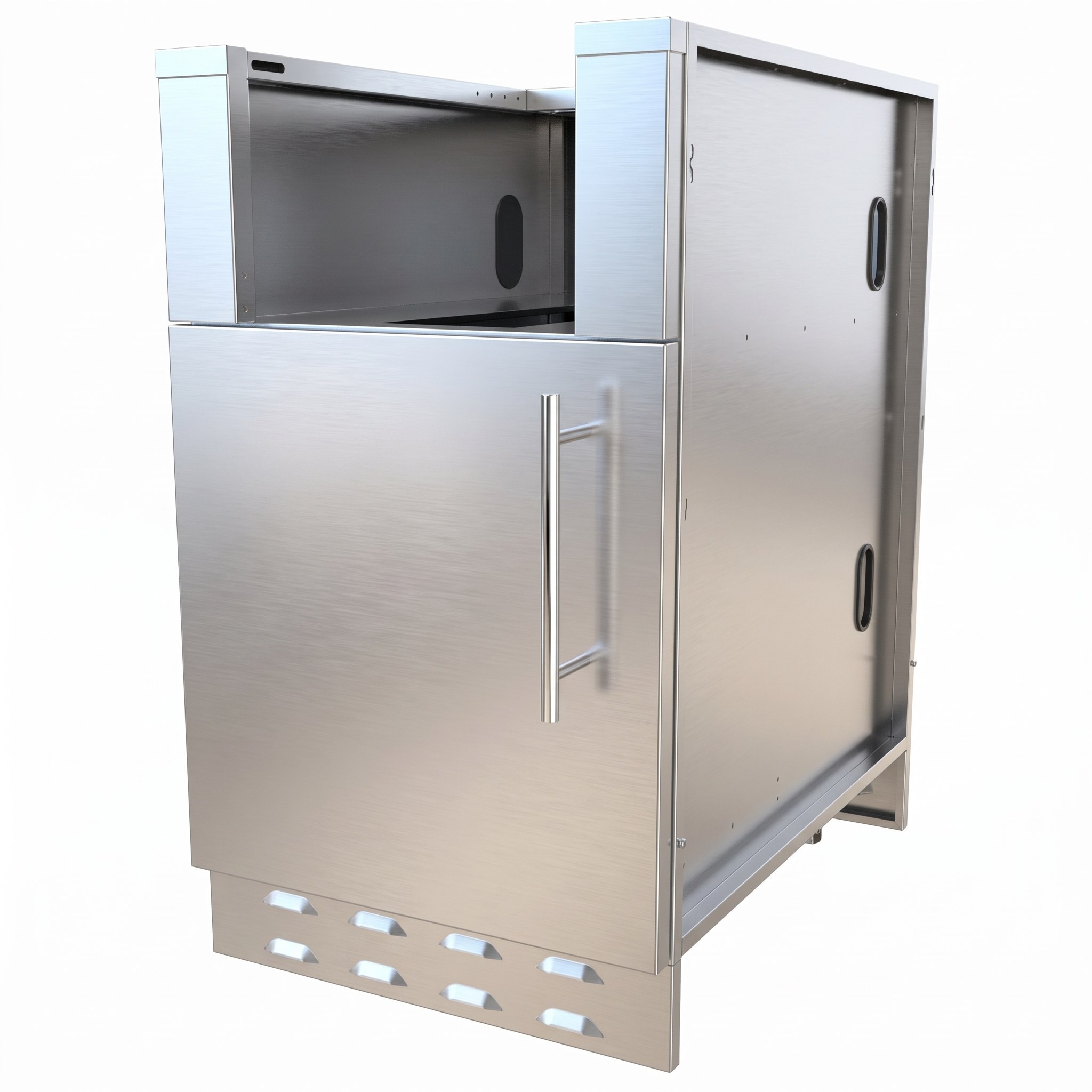

SAC20CSDL Cocktail / Side Burner
- Cabinet Size
- 20"W × 28¼"D × 34½"H · Cocktail / Side Burner Cabinet
- Appliance Type
- Cocktail / Side Burner
- Max Appliance Width
- 9¾"–14½" cut-out
- Max Height
- 8"–10¼"
- Compatible Appliances
- Sunstone® SUN13VDB Versa Double Burner, Sunstone® SUN13CPRO Companion Pro, Sunstone® B-RBC14 14" cocktail station, Most 14½" slide-in side burners and bar stations
- Notes
- Left-swing door for trash or propane. Trim-kit front for Versa side burners and 14" cocktail / bar stations.

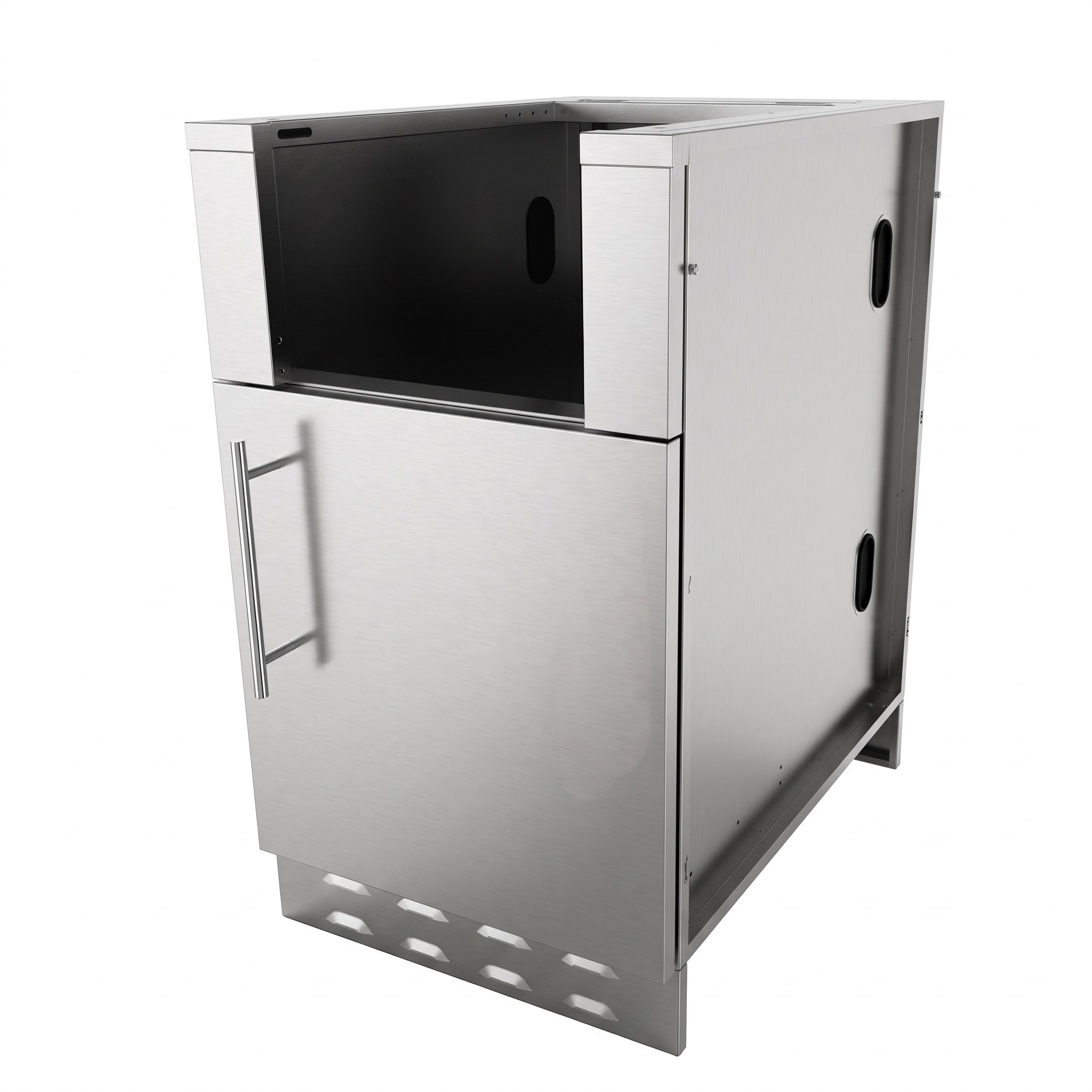

SAC20CSDR Cocktail / Side Burner
- Cabinet Size
- 20"W × 28¼"D × 34½"H · Cocktail / Side Burner Cabinet
- Appliance Type
- Cocktail / Side Burner
- Max Appliance Width
- 9¾"–14½" cut-out
- Max Height
- 8"–10¼"
- Compatible Appliances
- Sunstone® SUN13VDB Versa Double Burner, Sunstone® SUN13CPRO Companion Pro, Sunstone® B-RBC14 14" cocktail station, Most 14½" slide-in side burners and bar stations
- Notes
- Right-swing door for trash or propane. Same 14½" cut-out as SAC20CSDL.
SAC34CGDC Cocktail / Side Burner
- Cabinet Size
- 34"W × 28¼"D × 34½"H · Hybrid Grill / 30" Cocktail Cabinet
- Appliance Type
- Cocktail / Side Burner
- Max Appliance Width
- 23⅞"–28½" cut-out
- Max Height
- 10⅜"–12¾"
- Compatible Appliances
- 30" cocktail / bar-center stations, Sunstone® charcoal and hybrid grills (see Grill Cabinets), Most 24"–28½" cut-out bar centers
- Notes
- Dual-listed on Grill Cabinets as a charcoal/hybrid grill base. On this page it is the bay for the larger 30" cocktail station.

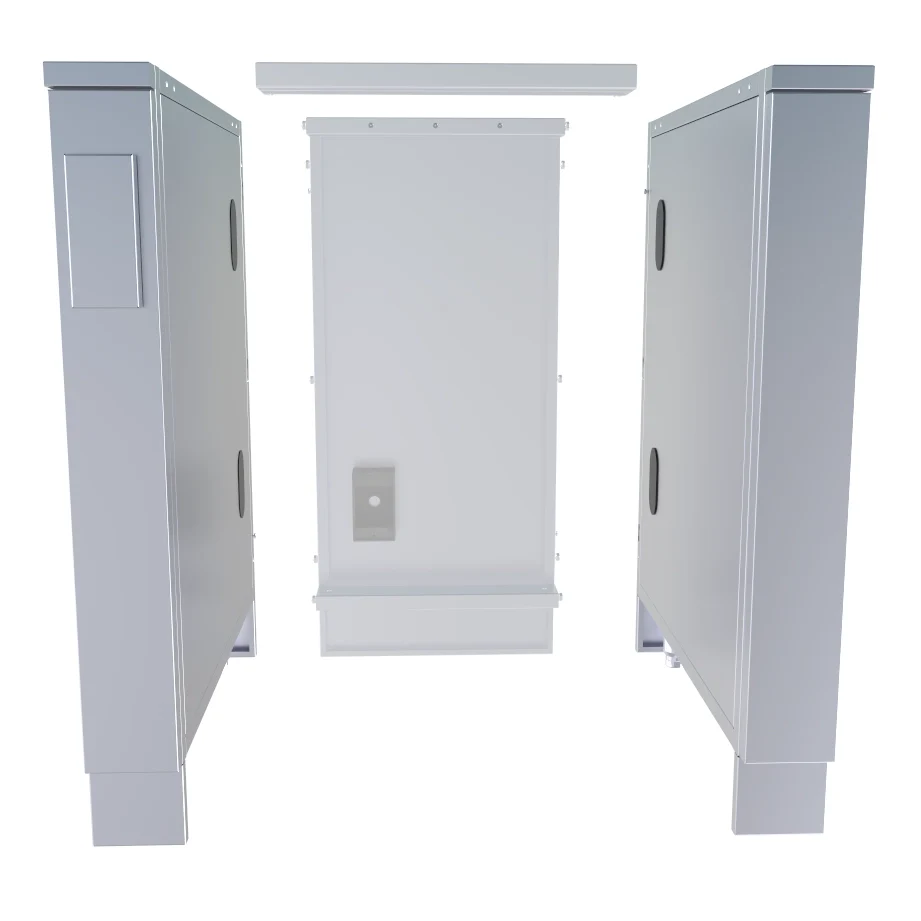

SCC4SPEL / SCC4SPER Partition Panel
- Cabinet Size
- 4" Combo Left & Right Panels · Partition Panel Package
- Appliance Type
- Partition Panel
- Max Appliance Width
- Adjustable — pairs with any back panel
- Max Height
- Adjustable leg height
- Compatible Appliances
- Use with SCC15SPE, SCC21SPE, or SCC25SPE back panels, Accommodates fridges, wine coolers, kegerators, ice makers, Can also accept grill carts
- Notes
- Two side partition panels included. Allows unlimited expandability for multiple appliance runs. Left panel includes 304 SS electrical cover.

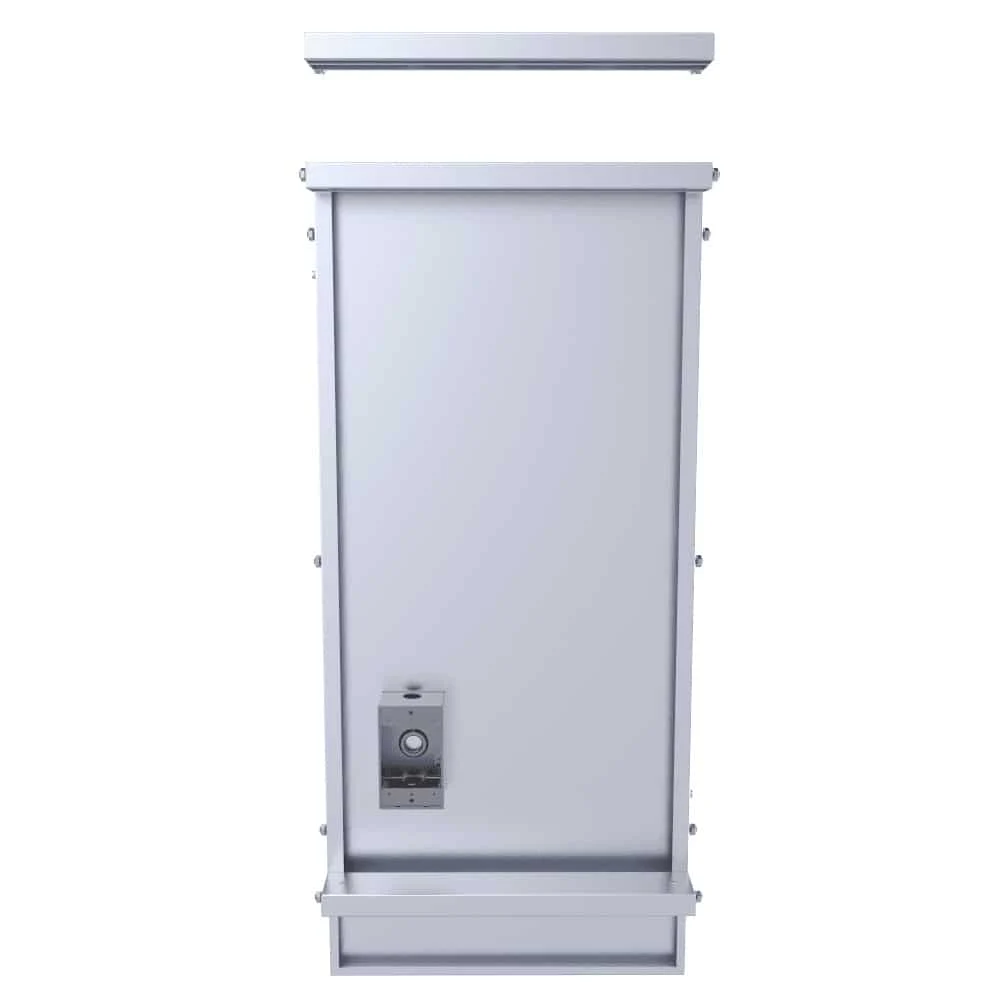

SCC15SPE Partition Panel
- Cabinet Size
- 15" Back Appliance Panel · Back Support Panel
- Appliance Type
- Partition Panel
- Max Appliance Width
- Pairs with 15" wide appliance run
- Max Height
- Adjustable
- Compatible Appliances
- 15" fridges, wine coolers, ice makers, Sunstone® 15" Fridge, Perlick® 15", Marvel® 15"
- Notes
- Back support panel for 15" appliance opening. Combine with SCC4SPEL/SCC4SPER side panels.
SCC21SPE Partition Panel
- Cabinet Size
- 21" Back Appliance Panel · Back Support Panel
- Appliance Type
- Partition Panel
- Max Appliance Width
- Pairs with 21" wide appliance run
- Max Height
- Adjustable
- Compatible Appliances
- 21" fridges, wine coolers, kegerators, Sunstone® 21" Fridge, Perlick® 20", U-Line® 21"
- Notes
- Back support panel for 21" appliance opening. Combine with SCC4SPEL/SCC4SPER side panels.

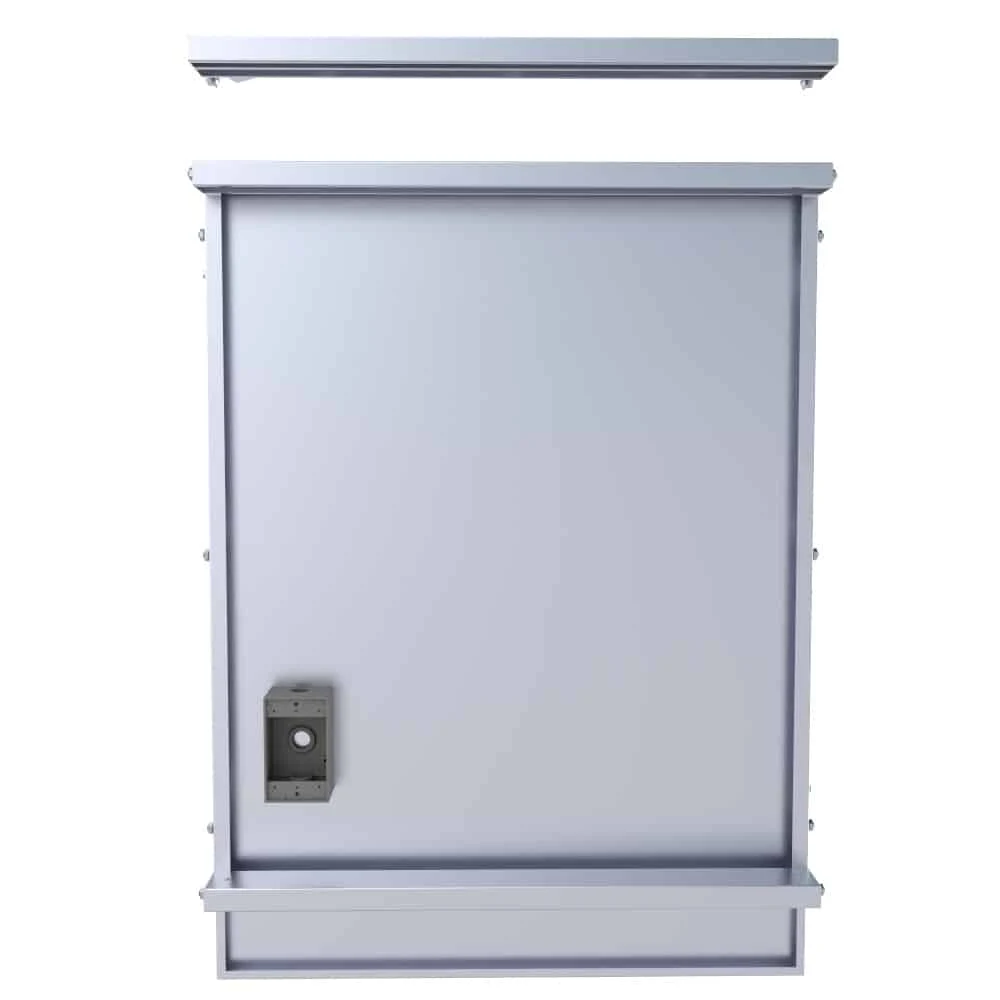

SCC25SPE Partition Panel
- Cabinet Size
- 25" Back Appliance Panel · Back Support Panel
- Appliance Type
- Partition Panel
- Max Appliance Width
- Pairs with 25" wide appliance run
- Max Height
- Adjustable
- Compatible Appliances
- 24–25" fridges, wine coolers, kegerators, Sunstone® 24" Fridge, Perlick® 24", Marvel® 24"
- Notes
- Back support panel for 25" appliance opening. Combine with SCC4SPEL/SCC4SPER side panels.
Need help choosing the right appliance cabinet? Our team is ready to assist. Call 888-934-9449.
Built as part of a Sunstone island
Warranty
304 stainless cabinet bodies carry the same structural warranty as the rest of the island.
Learn more →304 Stainless Steel
No coated mild steel. Outdoor-rated stainless through the box, doors, and hardware.
Pin-Hinge Assembly
Cabinets lock to neighbors without a contractor. Electrical boxes ship in the run.
Ships Fully Assembled
304 stainless cabinets arrive ready to pin-lock. Fasten the handles, screw in the legs, and snap on the kick plates.
Free Freight
Free freight shipping to the 48 contiguous states on cabinet orders.
Designed in Texas
Sunstone has built modular outdoor islands since 2001. Every cabinet pin-locks to the next for a single stainless run.
